The XSU catalogue groups more than one dimensional family. Match the complete XSU08 or XSU14 designation before comparing envelope, fixing holes or load data. The listed size range includes large slewing arrangements as well as more compact assemblies.View XSU series table · Request a drawing or quote
Search a model or enter any known dimensions.
Exact dimensions in mm. B/H is the overall width or height. Check mounting details on the product page.
Showing all 11 results

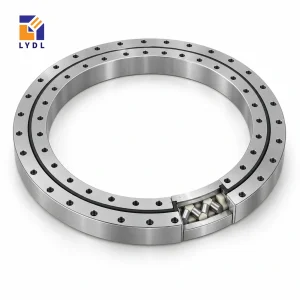

Cross Roller Slewing Bearings
Ungeared Cross Roller Slewing Bearing
130 × 205 × 25.4 mm
Bore d × Outside D × Width / height B/HUngeared Cross Roller Slewing Bearing
150 × 225 × 25.4 mm
Bore d × Outside D × Width / height B/HUngeared Cross Roller Slewing Bearing
180 × 255 × 25.4 mm
Bore d × Outside D × Width / height B/HUngeared Cross Roller Slewing Bearing
220 × 295 × 25.4 mm
Bore d × Outside D × Width / height B/HUngeared Cross Roller Slewing Bearing
280 × 355 × 25.4 mm
Bore d × Outside D × Width / height B/HUngeared Cross Roller Slewing Bearing
360 × 435 × 25.4 mm
Bore d × Outside D × Width / height B/HUngeared Cross Roller Slewing Bearing
344 × 484 × 56 mm
Bore d × Outside D × Width / height B/HUngeared Cross Roller Slewing Bearing
474 × 614 × 56 mm
Bore d × Outside D × Width / height B/HUngeared Cross Roller Slewing Bearing
574 × 714 × 56 mm
Bore d × Outside D × Width / height B/HUngeared Cross Roller Slewing Bearing
674 × 814 × 56 mm
Bore d × Outside D × Width / height B/H| Check before selection | Information to provide |
|---|---|
| 1 | Complete family designation and envelope |
| 2 | Fixing-hole pitch circles, count and bolt specification |
| 3 | Raceway load and bolted-joint load under the same duty case |
Compare XSA for an externally geared reference family or XSI for an internally geared family. Gearless XSU selection still requires an external drive arrangement. Compare related series.
Individual model pages are being added. Use the series table or send the complete model number and drawing for review.
The existing table includes XSU141094 with a 1024 mm bore and 1164 mm outside diameter. Preload is a configuration to confirm, not a general promise of zero backlash for the whole assembly.
Technical reference: Schaeffler slewing ring catalogue 404. Brand names identify reference families only. Supplied LYDL dimensions, tolerances, load ratings and acceptance requirements are defined by the drawing and quotation agreed for the order.
Request a drawing or quote with the complete model, quantity, loads, speed, duty cycle and mounting requirements.
