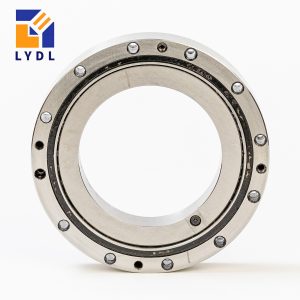

SHF / SHG output-bearing selection depends on the full reducer designation and flange arrangement. Use the existing dimension table to identify a candidate, then check the output interface and load case. These references describe output support, not the wave-generator flexible bearing.View SHF / SHG series table · Request a drawing or quote
Showing the single result
| Check before selection | Information to provide |
|---|---|
| 1 | Reducer series, size and exact unit variant |
| 2 | Hollow-shaft clearance, output flange and mounting holes |
| 3 | External force, moment, duty cycle and rotational accuracy |
CSG / CSF references use another reducer-family interface. Keep the drawing and rated conditions together when comparing alternatives. Compare related series.
Individual model pages are being added. Use the series table or send the complete model number and drawing for review.
The existing published LYDL table covers sizes 14–50. Other sizes, including 65, require a separate drawing and availability confirmation.
Technical reference: Harmonic Drive official gear-unit information. Brand names identify reference families only. Supplied LYDL dimensions, tolerances, load ratings and acceptance requirements are defined by the drawing and quotation agreed for the order.
Request a drawing or quote with the complete model, quantity, loads, speed, duty cycle and mounting requirements.
