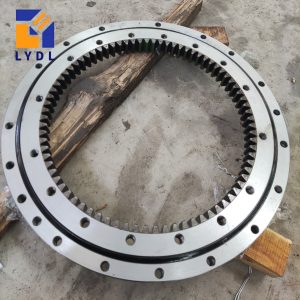

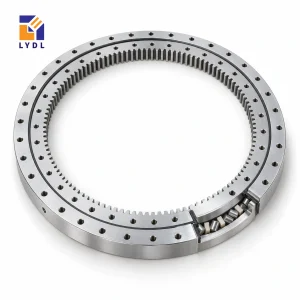

XSI14 is an internally geared reference family for crossed roller slewing arrangements. Check the space for the internal pinion and fastening tools together with the bearing envelope. The dimension symbols in the table must be read against the matching drawing.View XSI series table · Request a drawing or quote
Search a model or enter any known dimensions.
Exact dimensions in mm. B/H is the overall width or height. Check mounting details on the product page.
Showing all 8 results
Internally Geared Cross Roller Slewing Bearings
Internal Gear Cross Roller Slewing Bearing
325 × 484 × 56 mm
Bore d × Outside D × Width / height B/HInternal Gear Cross Roller Slewing Bearing
444 × 614 × 56 mm
Bore d × Outside D × Width / height B/HInternal Gear Cross Roller Slewing Bearing
546 × 714 × 56 mm
Bore d × Outside D × Width / height B/HInternal Gear Cross Roller Slewing Bearing
648 × 814 × 56 mm
Bore d × Outside D × Width / height B/HInternal Gear Cross Roller Slewing Bearing
736 × 914 × 56 mm
Bore d × Outside D × Width / height B/HInternal Gear Cross Roller Slewing Bearing
840 × 1014 × 56 mm
Bore d × Outside D × Width / height B/HInternal Gear Cross Roller Slewing Bearing
984 × 1164 × 56 mm
Bore d × Outside D × Width / height B/H| Check before selection | Information to provide |
|---|---|
| 1 | Internal gear dimensions and pinion-clearance envelope |
| 2 | Pilot diameters, mounting-hole pattern and axial height |
| 3 | Load case, bolted connection, lubrication and preload specification |
Compare externally geared XSA and gearless XSU when selecting the drive layout. Their installation details are not interchangeable merely because they share a size family. Compare related series.
Individual model pages are being added. Use the series table or send the complete model number and drawing for review.
A/B/C/D and gear symbols are drawing-dependent. Unclear or blank legacy table entries require drawing confirmation and must not be interpreted as zero.
Technical reference: Schaeffler slewing ring catalogue 404. Brand names identify reference families only. Supplied LYDL dimensions, tolerances, load ratings and acceptance requirements are defined by the drawing and quotation agreed for the order.
Request a drawing or quote with the complete model, quantity, loads, speed, duty cycle and mounting requirements.
