XSA Series Externally Geared Cross Roller Slewing Bearings

XSA14 is an externally geared cross roller slewing bearing reference family. Start with the complete designation and drawing, then review the gear interface and bolted connection. Precision and preload values alone cannot define a replacement bearing.

Browse XSA series · Request a drawing or quote

Request a Quotation

Or email sales@luoyangdeeplink.com for drawings, tolerances and lead times.

Need this model? Request a XSA Series Externally Geared Cross Roller Slewing Bearings quotation and drawing or email us directly — LYDL replies within one working day.

Selecting XSA slewing bearings

Bore, outside diameter, height and pilot dimensions
Fixing-hole layout and allowable load on the bolted joint
Gear module, tooth count, quality and backlash at the pinion

Compare XSI for internal teeth or XSU for a gearless arrangement. Confirm which diameter each A/B/C/D symbol represents on the relevant drawing. Compare the related series.

Individual model pages are being added. Use the series table or send the complete model number and drawing for review.

XSA series tables

Read all dimensions against the matching drawing. Blank values mean unspecified, not zero. Reference numbers do not establish full interchangeability.

Existing XSA accuracy, preload and gear data — partial specification
Model	A (mm)	B (mm)	C (mm)	D (mm)	Preload (mm)	Pitch diameter d0 (mm)	Module m (mm)	Teeth z	Drawing
XSA140414N	0.04	0.04	0.06	0.06	0.01-0.03	495	5	99	Drawing
XSA140544N	0.04	0.04	0.07	0.06	0.01-0.03	630	6	105	Drawing
XSA140644N	0.05	0.05	0.08	0.07	0.01-0.04	732	6	122	Drawing
XSA140744N	0.05	0.05	0.08	0.08	0.01-0.04	828	6	138	Drawing
XSA140844N	0.06	0.06	0.09	0.08	0.01-0.04	936	8	117	Drawing
XSA140944N	0.06	0.06	0.09	0.09	0.01-0.05	1032	8	129	Drawing
XSA141094N	0.07	0.07	0.11	0.11	0.01-0.05	1184	8	148	Drawing

Reference illustrations

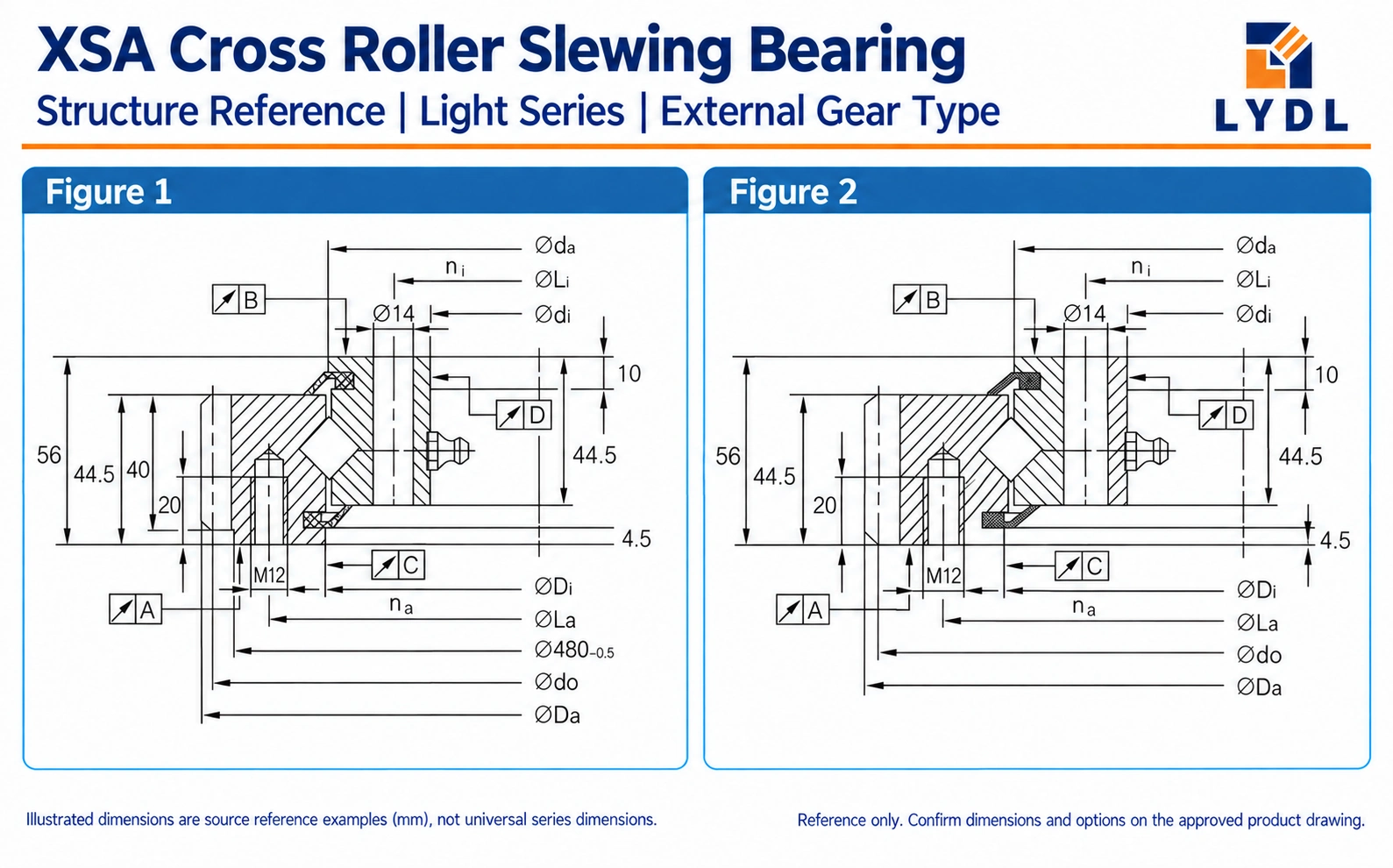

LYDL XSA externally geared cross roller slewing bearing structure reference showing Figures 1 and 2 with mounting dimensions and datum symbols — XSA externally geared cross roller slewing bearing reference sections, Figures 1 and 2. Illustrated numerical dimensions are source examples and do not apply to every XSA model. Select the image to view the full-size drawing.

Drawing and reference information

The existing table is a partial specification table. A complete dimensional and mounting drawing is required before final selection or manufacture of adjacent parts.

Technical reference: Schaeffler slewing ring catalogue 404. Brand names identify reference families only. Supplied LYDL dimensions, tolerances, load ratings and acceptance requirements are defined by the drawing and quotation agreed for the order.

Request a drawing or quote with the complete model, quantity, loads, speed, duty cycle and mounting requirements.
