XI Series Internally Geared Cross Roller Bearings

Name: XI Series Internally Geared Cross Roller Bearings | LYDL
Brand: LYDL

XI is an internally geared crossed roller reference family. The pinion operates inside the geared ring, which changes the installation and access requirements. Review bearing dimensions, fixing holes and gear geometry as one assembly.

Browse XI series · Request a drawing or quote

Selecting XI bearings

Internal gear module, tooth count and available pinion space
Mounting bolt access, pilot dimensions and envelope
Load direction, overturning moment and gear drive force

Compare XA when the machine layout requires external teeth, or XU when a separate drive arrangement is preferred. Compare the related series.

Individual model pages are being added. Use the series table or send the complete model number and drawing for review.

XI series tables

Read all dimensions against the matching drawing. Blank values mean unspecified, not zero. Reference numbers do not establish full interchangeability.

Basic model	Weight	Mounting dimensions													Dimension parameter				Corresponding type
Basic model	Kg	Da	Da zt	di	Di	da	da zt	H	h	T	La	Li	ni/ na	dB	do	m	z	b	INA
LXII120288	12	340	338	216	289	287	285	38	33	5	324	252	20	9	224	4	56	34	XI120288N
LXII120420	23	486	484	332	421	419	417	39	34	5	462	378	16	14	340	4	85	34	XI120420N
LXII160489	35	562	560	384	490	488	486	45	40	6	538	440	40	14	396	6	66	40	XI160489N
LXII180635	67	722	720	504	636	634	632	54	47	7	690	580	24	18	520	8	65	47	XI180635N
LXII200720	84	812	810	584	721	719	717	58	51	8	780	660	40	18	600	8	75	51	XI200720N
LXII180865	93	952	950	736	866	864	862	54	47	8	920	810	20	18	752	8	94	47	XI180865N
LXII201100	150	1200	1198	950	1101	1099	1097	70	54	8	1160	1040	30	22	970	10	97	60	XI201100N

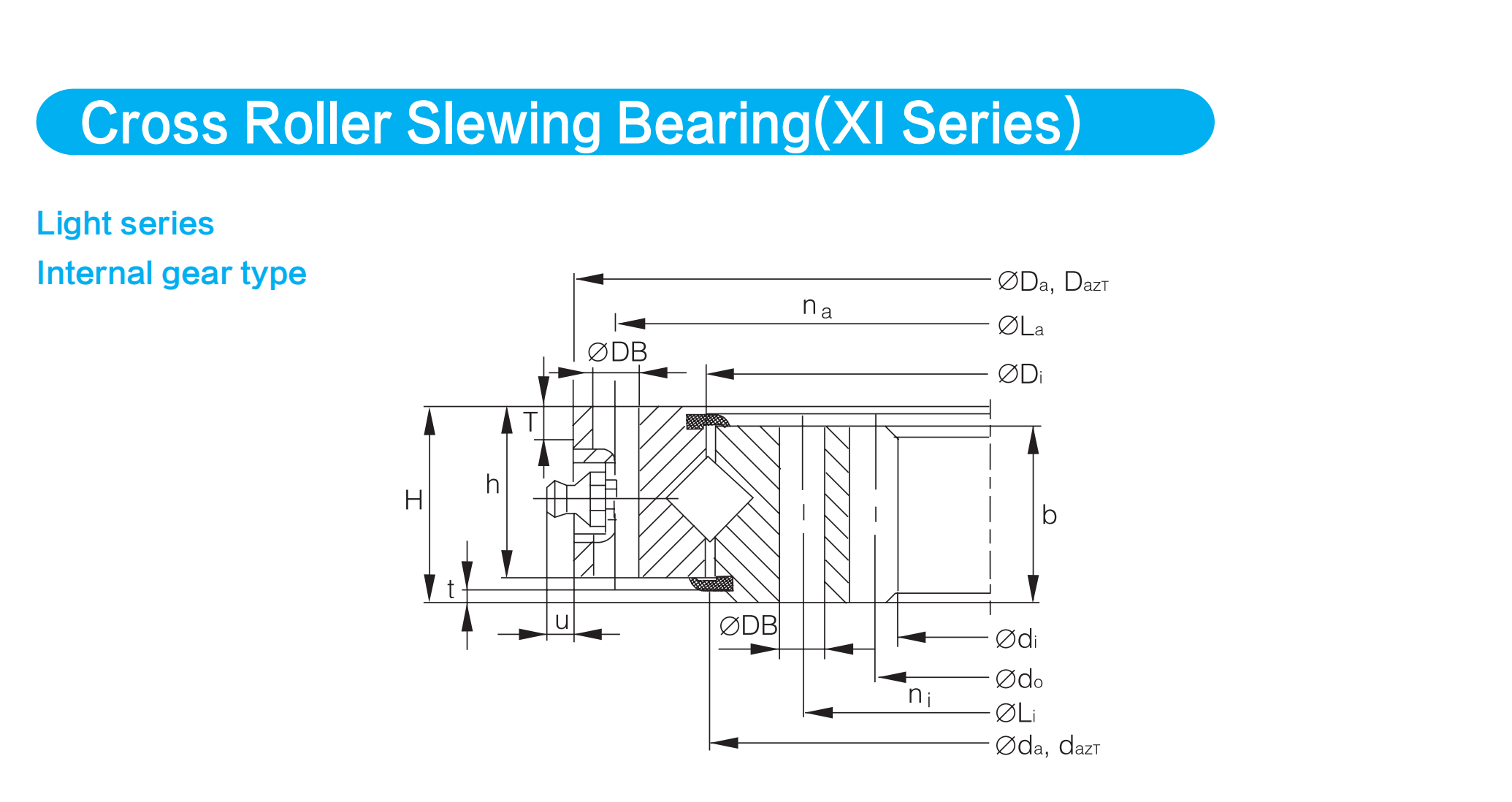

Reference illustrations

Drawing and reference information

LXII-style LYDL table designations and XI reference numbers require an approved cross-reference. Matching the family letters alone is not sufficient.

Technical reference: Schaeffler slewing ring catalogue 404. Brand names identify reference families only. Supplied LYDL dimensions, tolerances, load ratings and acceptance requirements are defined by the drawing and quotation agreed for the order.

Request a drawing or quote with the complete model, quantity, loads, speed, duty cycle and mounting requirements.
