Kaydon Thin Section Bearing Alternatives
LYDL manufactures thin section ball bearings fully interchangeable with Kaydon Real-Slim KA, KB, KC and KD series — identical inch-series boundary dimensions and the same XP0 / CP0 / AR0 designation system, at factory-direct pricing with significantly shorter lead times. Send us your Kaydon part number and receive the equivalent LYDL model with a formal quotation within 24 hours.

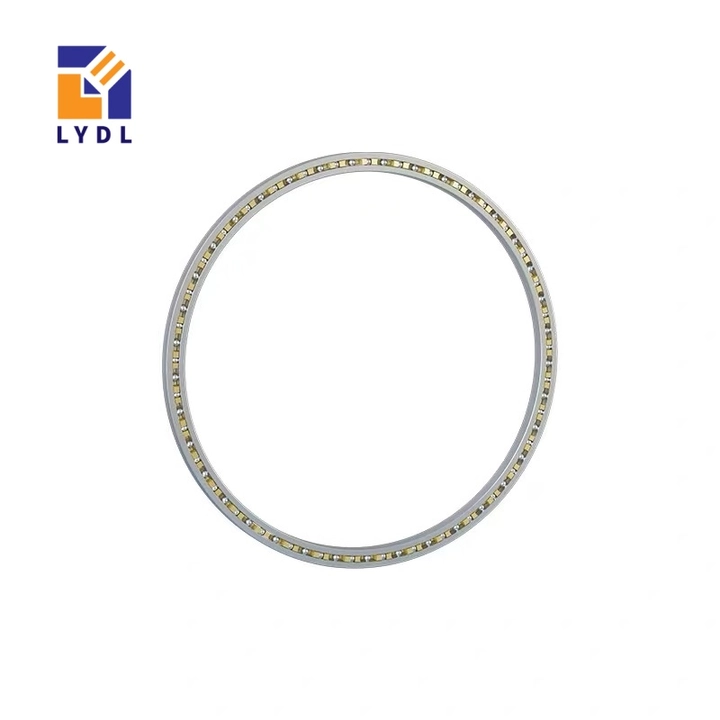

Kaydon invented the thin section bearing — but when lead times stretch or volume pricing matters, LYDL produces the same inch-series geometries under the same part-number logic. If your drawing calls a KA040XP0, the LYDL KA040XP0 matches it in boundary dimensions: same bore, same outside diameter, same narrow cross-section. Replacement is a true drop-in.
Why Buyers Look for a Kaydon Alternative
- Price: premium brand pricing adds up quickly on multi-axis machines and volume orders
- Lead time: standard premium-brand delivery often runs long, and non-stock models take longer
- Flexibility: custom preload, special grease or laser-marked part numbers are hard to get on small batches
LYDL solves exactly these three problems — without changing anything on your drawing.
Kaydon to LYDL Cross-Reference Table
| Kaydon Series | Ball Contact Type | LYDL Equivalent | Example Models (in production) |
|---|---|---|---|
| KA (angular contact) | Angular contact (Type A) | LYDL KA · AR0 | KA020AR0 · KA030AR0 · KA040AR0 · KA050AR0 · KA060AR0 |
| KA / KC (radial contact) | Radial contact (Type C) | LYDL KA / KC · CP0 | KA020CP0–KA100CP0 · KC040CP0 · KC050CP0 · KC060CP0 |
| KB / KD (four point contact) | Four point contact (Type X) | LYDL KB / KD · XP0 | KB030XP0–KB080XP0 · KD050XP0 · KD060XP0 · KD080XP0 |
| JU (sealed four point contact) | Sealed Type X | LYDL JU · XP0 sealed | JU040XP0 · JU045XP0 · JU050XP0 · JU060XP0 · JU070XP0 · JU080XP0 · JU100XP0 · JU120XP0 |
| JU (sealed radial contact) | Sealed Type C | LYDL JU · CP0 sealed | JU040CP0 · JU045CP0 · JU050CP0 · JU060CP0 · JU070CP0 · JU080CP0 · JU100CP0 · JU120CP0 |
| KB / KC metric variants | Metric thin section | LYDL BB metric series | BB5013 · BB6013 · BB8016 · BB10020 · BB20025 |
Designation logic: Kaydon and LYDL share the same suffix conventions — AR0 = angular contact, CP0 = radial contact, XP0 = four point contact. If your Kaydon model is not listed above, send the part number — in most cases the LYDL equivalent carries the same designation.
Same Dimensions. Same Precision. What Actually Changes?
| Kaydon Original | LYDL Replacement | |
|---|---|---|
| Boundary dimensions (inch series) | — | Identical (1:1), same designation system |
| Cross-section types | A / C / X, open & sealed | All types, open & sealed |
| Ring & ball material | 52100 equivalent | GCr15 through-hardened bearing steel |
| Typical lead time | Long on non-stock models | Shorter — stock & made-to-order, confirmed at quotation |
| Price level | Benchmark | Factory-direct |
| Customization (marking, grease, preload tuning) | Limited | Available on request, low MOQ |

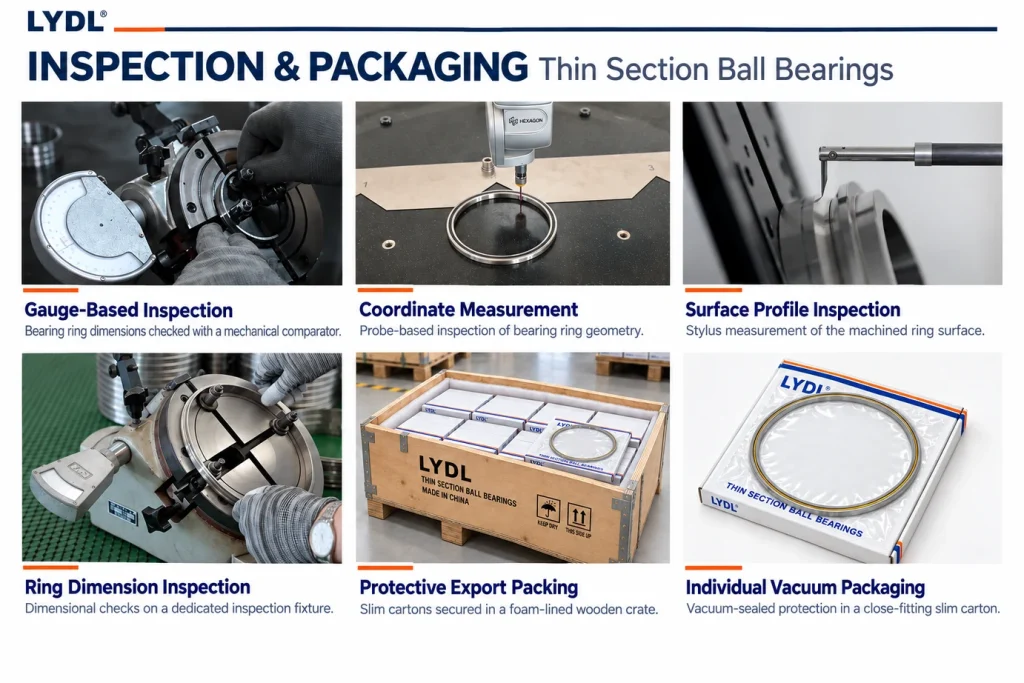

| Quality assurance | — | 100% inspection before shipment |
Only one thing really changes: your cost and delivery date.
How to Replace a Kaydon Bearing with LYDL — 4 Steps
- Send the Kaydon part number (e.g., KA040XP0, JU050CP0) via our quote form or email
- Receive the equivalent LYDL model + quotation within 24 hours, with a dimension datasheet for your records
- Approve drawing or sample — samples available for qualified projects, confirmed per project
- Install as usual — same fits, same seals, same preload class. Our engineers provide mounting guidance if needed
Applications Already Using LYDL Replacements
- Industrial robots and harmonic drive reducers
- Semiconductor and electronics manufacturing equipment
- Medical and optical instruments
- Aerospace and defense mechanisms
- Precision indexing and rotary stages
Frequently Asked Questions
Do I need to modify my housing or shaft to replace a Kaydon bearing with LYDL?
No. LYDL thin section bearings are manufactured to the same inch-series boundary dimensions as the Kaydon original, under the same designation system. Replacement is a direct drop-in with no redesign.
Does LYDL offer sealed thin section bearings like the Kaydon JU series?
Yes. Sealed four point contact (XP0) and sealed radial contact (CP0) versions are in current production from JU040 to JU120.
Are the contact types the same — Type A, C and X?
Yes. LYDL produces angular contact (AR0), radial contact (CP0) and four point contact (XP0) types with the same suffix conventions as Kaydon, so a one-for-one swap by part number is straightforward.
Will service life be equivalent?
LYDL bearings use GCr15 through-hardened bearing steel with precision-ground raceways and are 100% inspected before shipment. For life-critical applications, share your load and speed conditions and our engineers will run an L10 life calculation for your specific case.
What is the minimum order quantity?
Low MOQ — confirmed per model at quotation, with samples available for qualified projects.
Request Your Kaydon Replacement Quote
Send your Kaydon part number to our engineering team — you will receive the equivalent LYDL model, datasheet and factory-direct quotation within 24 hours.
Request a Quote | Email: sales@luoyangdeeplink.com
Note: Kaydon is a registered trademark of Kaydon Corporation (Regal Rexnord). LYDL (Luoyang Deeplink Technology Co., Ltd.) is an independent manufacturer and is not affiliated with, endorsed by, or authorized by Kaydon. All part numbers are used solely for identification of interchangeable geometries.
