Spherical Roller Bearings: Features, Advantages & Applications
Spherical roller bearings (SRBs) are heavy-duty, self-aligning rolling bearings designed to accommodate radial loads, axial loads (in both directions), and misalignment. Below is a concise, industry-aligned English overview tailored for technical documentation, product catalogs, and global customer communication.
Core Features
Self-Aligning CapabilityThe spherical raceway of the outer ring allows for angular misalignment (typically 2°–3° for standard designs, up to 5° for special variants), compensating for shaft deflection, housing deformation, or installation errors—critical for harsh industrial environments.
Dual Load CapacityEngineered to handle combined radial loads (primary) and bidirectional axial loads (secondary). Optimized roller profiles (e.g., E-type design) distribute loads evenly, reducing stress concentrations and extending service life.
Versatile Bore & Structural Options
Bore types: Cylindrical bore (direct mounting on stepped shafts) or tapered bore (1:12/1:30 tapers, compatible with adapter/withdrawal sleeves for easy installation on smooth shafts).
Structural variants: CA (solid brass cage, heavy-load), CC/C (pressed steel cage, general-purpose), E (optimized geometry, high efficiency), and split-type (installable without shaft removal).
Enhanced DurabilityAvailable with reinforced cages (brass, steel, or polyamide), corrosion-resistant coatings (e.g., zinc plating), and lubrication features (W33 oil grooves/holes for continuous oil supply). Sealed variants (2RS) offer pre-lubricated, dust/water-proof protection.
Wide Clearance & Precision RangesInternal clearance options (C2/C0/C3/C4/C5) adapt to temperature variations and assembly interference; precision classes (P0/P6/P5/P4) meet requirements for low vibration and high rotational accuracy.

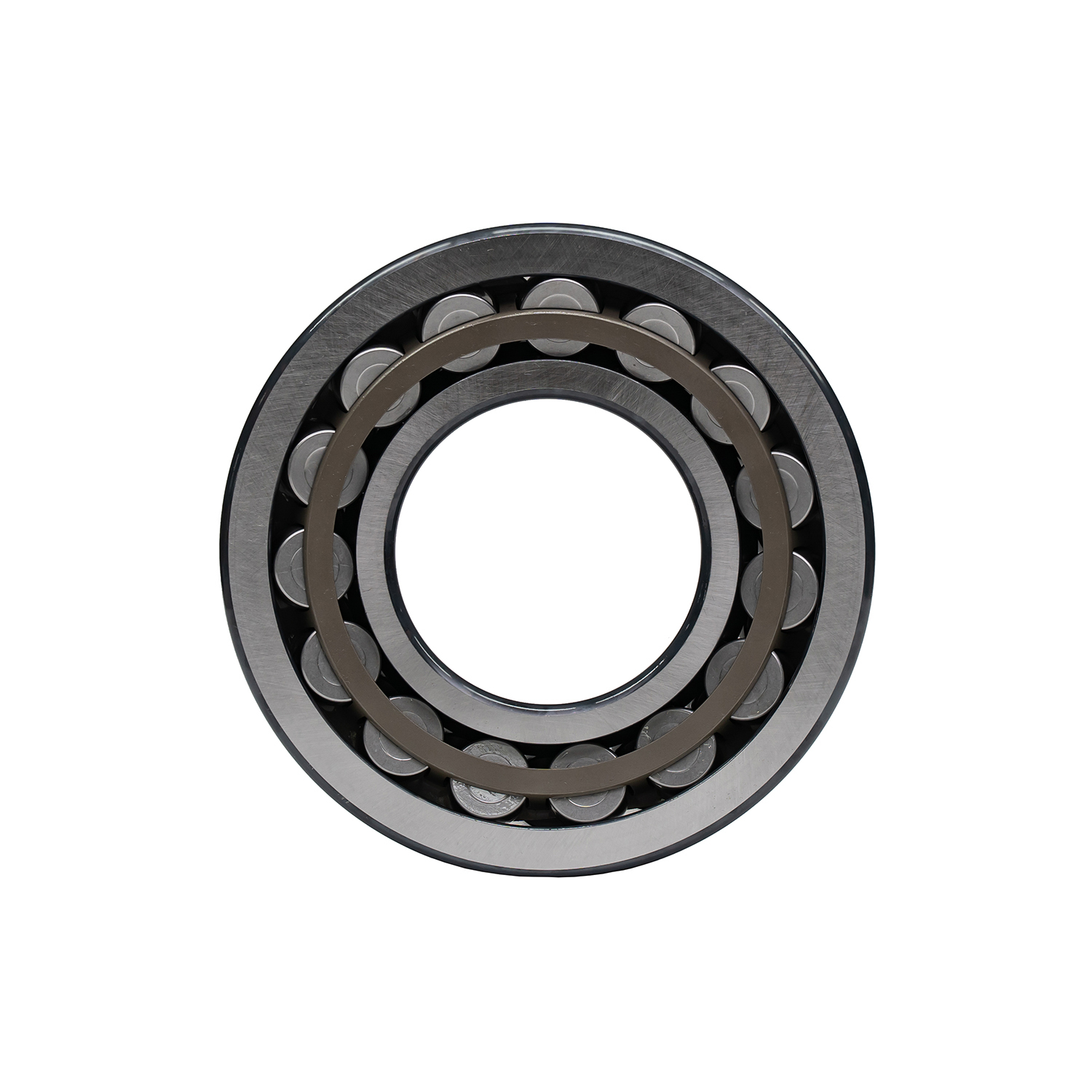

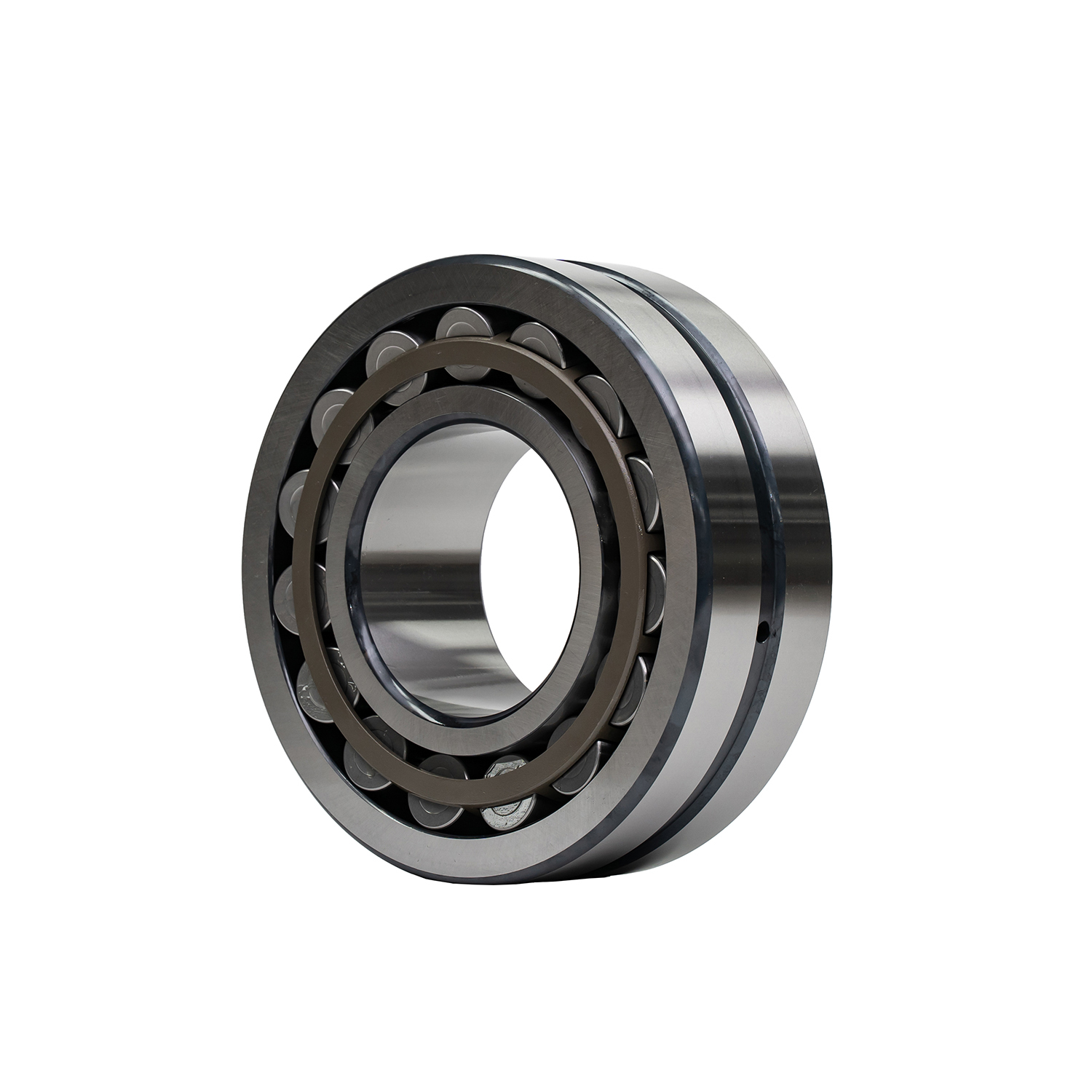

1.Product Introduction: General-purpose self-aligning roller bearings, with a double-row spherical roller structure, bearing radial loads, capable of compensating for installation deviations, and widely used in industrial applications. 2.Structure Type: The inner ring has a spherical raceway, the outer ring has double ribs, with double-row rollers + stamped steel / brass cage, and it is open / sealed. 3.Size Range: Inner diameter 20 – 1000mm, outer diameter 47 – 2000mm, width 16 – 300mm. 4.Material: Inner ring / outer ring: GCr15 bearing steel (conventional), 42CrMo (for heavy-load models), rollers: GCr15 bearing steel, cage: stamped steel / brass. 5.Precision: P0,P6,P5,P4. 6.Common Inner Tapered Hole: For inner diameters ≥ 50mm, a 1:12 tapered hole can be optionally selected, and for large inner diameters (≥ 200mm), the tapered hole is a standard configuration. 7.Application Fields: Electric motors, reducers, construction machinery, rolling mills, port equipment. 8.Key Inspection Items: Self-aligning performance, radial load-bearing capacity, dimensional accuracy.
